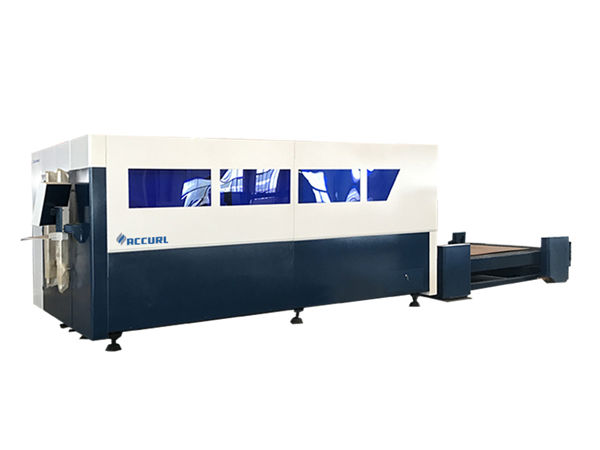

single platform cnc fiber laser cutting machine , metal sheet cutter

Ürün Detayları

Belgelendirme: ce / iso / fda / sgs / tuv
Ödeme ve gönderim koşulları:
Minimum Sipariş Miktarı: 1
Fiyat: pazarlık
Paketleme Detayları: Tahta Sandık
Teslim Süresi: 15 iş günü
Ödeme Koşulları: T / T, L / C, Western Union
Tedarik Yetenek: 2000 adet

Detaylı Ürün Açıklaması

Ürün adı:	Fiber Lazer Kesim Makinesi	Lazer türü:	Fiber lazer
Lazer Gücü:	500-1000w	Çalışma alanı:	1500 x 3000mm
Lazer Dalga Boyu:	1070-1090nm	Güç kaynağı:	380V / 50Hz
Garanti:	1 yıl	Kesme kafası:	Raytools

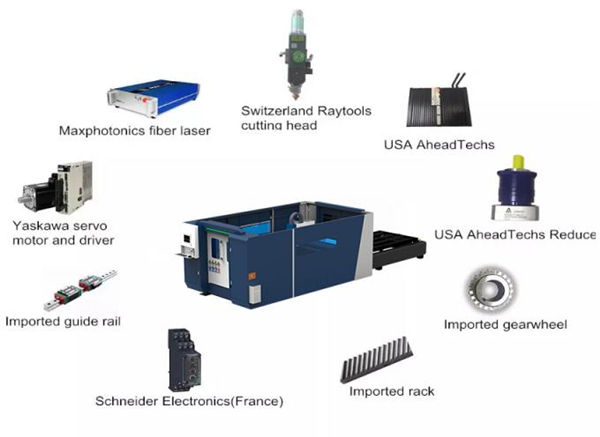

Ana yapılandırma ve teknik avantaj

Little to no maintenance costs
Parts process cost is very low
A "clean cut" surface quality is obtained
Fiber laser cutting is the fastest process for thin sheet metal
Reflective materials like aluminium,copper and brass can be cut with ease
Resonator life is over 100,000 working hours

^{Ana Özellikler}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Fast cutting speed save working time .
3. Energy saving and environmental protection;
4. Excellent quality of light beam:small focus facula, fine cutting line, high working efficiency,best processing quality.
5.Very low maintenance costs: optical fiber transmission, without reflection lens; can save a lot of maintenance costs;
6. Products easy operation : no need to adjust the optical path;
7. Flexible light guide effect: small size, compact structure and easy to meet flexible manufacturing requirements.}

^{Teknik parametreler}

^{Product name}	^{Fiber Lazer Kesim Makinesi}
^{Lazer türü}	^{Fiber lazer}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Kesme kafası}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Maksimum koşu hızı}	^600m/min
^{Konumlandırma doğruluğu}	^{≤ ± 0.05mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Çalışma masası}	^{Rack working platform}
^{Kontrol sistemi}	^{Cypcut kontrol sistemi}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Maksimum Hızlanma}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^transmisyon	^{Precise pinion and rack,dual-drive transmitting}

Descriptions	Parametreler
model	1530 Fiber laser cutting machine
Çalışma alanı	1500 x 3000mm
Lazer gücü	500W,1000W,15000W,2KW,3KW and so on, it depends on your demand.
Laser Wave Length	1064nm
Çalışma masası	Testere dişi
Maximum Idle Running Speed	1200mm/s
Pozisyon doğruluğu	±0.05mm/m
Position Speed	20 m / dak
Minimum Line Width	± 0.02mm
Kesme Kalınlığı	0-12mm
Kontrol sistemi	Cypcut
Position Type	red dot
Güç tüketimi	≤12KW
Working Voltage	380V / 50Hz
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	100000 saatten fazla
Fiber laser cutting head	Lasermech made in USA
Odak lens	Lasermech made in USA
Driver system	1500W Fuji servo motor made in Japan
Liner guider system	PMI made in Taiwan , (Option THK made in Japan)
İletim sistemi	Çift raf ve pinyon tipi
Raf sistemi	made in Germany
Chain system	Igus made in Germany
Delivery time	15 days

Ürün uygulaması

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Uygulamalar

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
