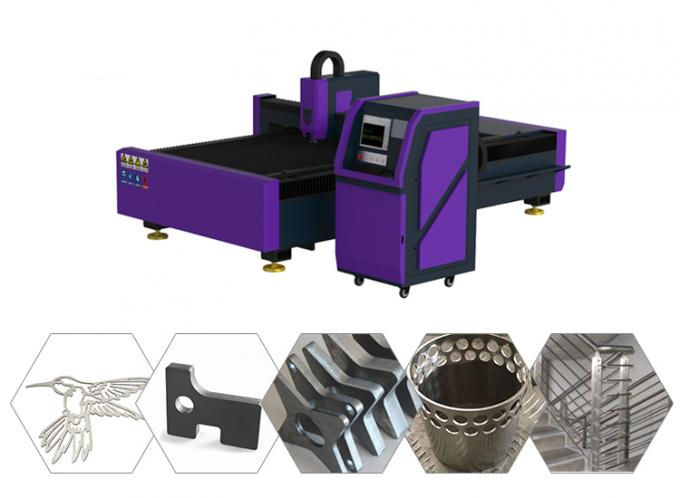

cnc metal cutting laser machine / fiber optic laser cutter

Ürün Detayları

Belgelendirme: ce / iso / fda / sgs / tuv
Ödeme ve gönderim koşulları:
Minimum Sipariş Miktarı: 1
Fiyat: pazarlık
Paketleme Detayları: Tahta Sandık
Teslim Süresi: 15 iş günü
Ödeme Koşulları: T / T, L / C, Western Union
Tedarik Yetenek: 2000 adet

Detaylı Ürün Açıklaması

Ürün adı:	Fiber Lazer Kesim Makinesi	Lazer türü:	Fiber lazer
Lazer Gücü:	500-1000w	Çalışma alanı:	1500 x 3000mm
Lazer Dalga Boyu:	1070-1090nm	Güç kaynağı:	380V / 50Hz
Garanti:	1 yıl	Kesme kafası:	Raytools

^{Ana yapılandırma ve teknik avantaj}

^{1, Fiber laser cutting is the fastest process for thin sheet metal.
2, A "clean cut" surface quality is obtained.
3, Reflective materials like aluminium,copper and brass can be cut with ease.
4, Parts process cost is very low.
5, Little to no maintenance costs.
6, Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7. Resonator life is over 100,000 working hours}

^{Ana Özellikler}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Fast cutting speed save working time .
3. Energy saving and environmental protection;
4. Excellent quality of light beam:small focus facula, fine cutting line, high working efficiency,best processing quality.
5.Very low maintenance costs: optical fiber transmission, without reflection lens; can save a lot of maintenance costs;
6. Products easy operation : no need to adjust the optical path;
7. Flexible light guide effect: small size, compact structure and easy to meet flexible manufacturing requirements.}

^{Teknik parametreler}

^{Product name}	^{Fiber Lazer Kesim Makinesi}
^{Lazer türü}	^{Fiber lazer}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Kesme kafası}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Maksimum koşu hızı}	^600m/min
^{Konumlandırma doğruluğu}	^{≤ ± 0.05mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Çalışma masası}	^{Rack working platform}
^{Kontrol sistemi}	^{Cypcut kontrol sistemi}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Maksimum Hızlanma}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^transmisyon	^{Precise pinion and rack,dual-drive transmitting}

Ürün uygulaması

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Uygulamalar

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
