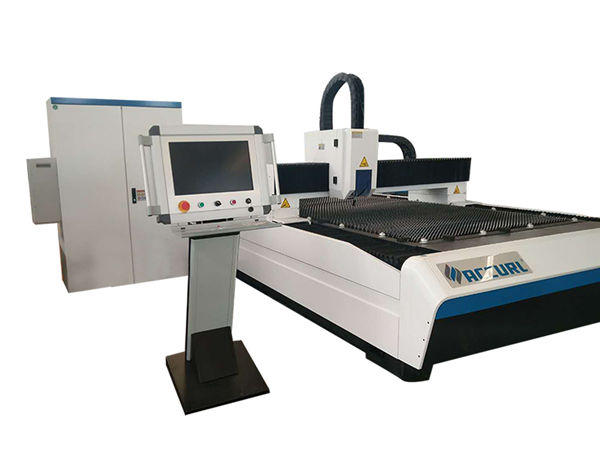

full enclosed industrial laser cutting machine 10m / min cutting speed

Ürün Detayları

Belgelendirme: ISO9001: 2008

Ödeme ve gönderim koşulları:

Minimum Sipariş Miktarı: 1

Fiyat pazarlığı

Paketleme Detayları: Tahta Sandık

Teslim Süresi: 7-15 gün

Tedarik Yetenek: 1 adet / ay

Detaylı Ürün Açıklaması

Ürün adı:	Metal Sheet Fiber Laser Cutting Machine	Lazer Gücü:	1000w 1500w
Lazer Dalga Boyu:	1080nm	Çalışma alanı:	3000 * 1500mm
Kesme Kalınlığı:	0-16MM (Lazer Gücüne bağlıdır)	Güç kaynağı:	380v
Garanti:	1 yıl

Ürün Açıklaması

1. Entegre makine tasarımı: makinenin sol ve sağ tarafındaki sol ve sağ toplama çekmecesi, yerden tasarruf sağlar.
2. Işık yolu sistemi ve kontrol sisteminin kararlılığı ve güvenilirliği.
3. Fiber lazer 100000 saatten fazla yüksek ve kararlı bir işleve ve ömre sahiptir.
4. Kesme hızı mükemmel kesim kenarı ile 25m / dk'ya kadar olan kesme kalitesiyle daha yüksek kesme kalitesi ve verimi.
5. Yüksek performanslı redüktör, dişli ve raf; Japon rehber ve vidalı mil.

Metal Sheet Fiber Laser Cutting Machine Advantages

1. low usage cost ,only 0.5-1.5km/h power consumption ,can use air to cut thin metal board.
2. High cutting speed , high effeciency,when cutting thin metal board. The speed can arrive 10m/min.
3. High quality of facula,samll deformation ,smooth and beautiful cutting surface.
4. Using import servomotor and Taiwan ball screw and guide rail ,high cutting precision.
5. Using special software to design all kinds of words or figures,then cutting immediately,flexible working and simple operating.
6. High stability,inport the best laser optical maser,steady performance ,that is the most important parts of Fiber cutter.The lifetime of Laser optical maser is 100,000 hours and free maintenance.
7. Low maintenance cost,no need working with air for the laser optical maser,fiber transmission ,no need reflector mirror , can save plenty of maintenance cost.
8. Simple and convenient operating,fiber transmission,no need adjust the light path.

Metal Sheet Fiber Laser Cutting Machine Advantages

Teknik özellikler

^{Lazer dalga boyu}	^1080nm
^{Kesme kalınlığı}	^0.2-16mm
^{Lazer çıkış gücü}	^1000W
^{Maksimum işlem aralığı}	^{3000 * 1500mm}
^{Makine sürüş modu}	^{ithal dişli kutusu ve pinon tahriki}
^{Y X. eksen konumlandırma hassasiyeti}	^{± 0.01mm}
^{XY ekseni tekrar konumlandırma hassasiyeti}	^{± 0.01mm}
^{Güç kaynağı modu}	^{380V / 50Hz}
^{Maksimum kesme hızı}	^{45m / dakika}
^{Minimum kesme çizgisi genişliği}	^0.02mm
^{Soğutma modu}	^{3 P Su soğutma}

Aksesuarlar

Worktable part: the machine adopts double platforms exchange automatically, saving time of loading and unloading materials. High cutting efficiency. Saving time and cost.
The table can carry up to 500KG. The worktable is surrounded by wanxiang ball bearings.
the side of the workbench is installed with the clamping device, which can firmly set the plate on the worktable, so that the plate will not move when the laser is cut.
transmisyon
Y axis adopt double drives.
Taiwan Hiwin guide rails and Germany rack and gear
high speed with stability when working
Motors and drives
The X, Y and Z axis are imported servo motors in Japan Yaskawa with high accuracy, high speed, high torque, large inertia and stable performance.
The high speed and speed of the machine are guaranteed
Drives 3kw. high cutting power and precision.
Laser Generator and Laser cutting head
All of our fiber laser cutter are installed with brand name laser generator------Maxphotonics.
Warranty 2 years. low-processing cost and environment-friendly.
Swiss Raytools laser cutting head or Chinese brand name WSX.
Both are high quality and good parameter stability.

Uygulama endüstrisi

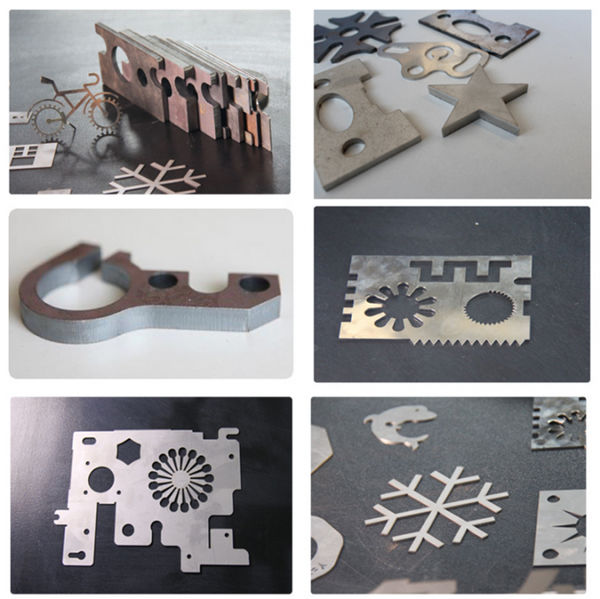

Applied to the sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automotive, food machinery, textile machinery,engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, gifts, tooling, decoration, advertising , metal external processing,processing, and other kitchenware manufacturing and processing industries.
