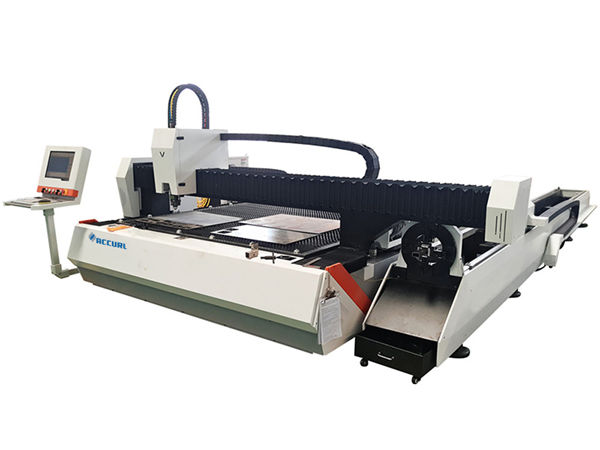

servo motor fiber laser tube cutting machine no noise with water cooling system

Ürün Detayları

Belgelendirme: ISO9001: 2008

Ödeme ve gönderim koşulları:

Minimum Sipariş Miktarı: 1

Fiyat pazarlığı

Paketleme Detayları: tahta sandık

Teslim Süresi: 15 gün

Tedarik Yetenek: 1000 adet

Detaylı Ürün Açıklaması

Ürün adı:	Metal Borular İçin Fiber Lazer Kesim Makinesi	Lazer türü:	Fiber lazer
Lazer Gücü:	500w / 800w / 1000w	Lazer Uygulaması:	Metal Boru Kesimi
Soğutma:	Su soğutma	Güç kaynağı:	380v
Uyumlu yazılım:	Coreldraw, Autocad

Bir Makine, Çift Kullanımlı, bir kere metal boru ve metal plakayı kesebilir
In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time

Metal fiber laser cutting machine

1. Compare with the plasma cutting, it has the high precision cutting for different kinds of metal materials, like cutting stainless steel, carbon steel, alloy steel, spring steel, aluminum, copper, silver, titanium and other metal materials below 6 mm.
2. Compare with the NC, which can cut any complicated process and shape.No noise and no need to open any moulds at all.
3. Compare with linear cutting, which has much faster speed,100 times higher than it.
4. Double lead screw to drive, Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
5. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
6. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
7. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
8. Steady performance: as a mature laser apparatus, the Fiber laser cutting machine is suitable for most metal manufacturing and processing industry.

Ana Özellikler

1. Spare parts: Adopt original imported servo motor, gear reducer, reducer, rail etc.
2. Electrical installation: Strong and weak electricity assemblied seperately. It reduces the interruption and improves response and movement speed effectively for fiber machine.
3. Precision: Adopt high precision grinding, imported rail and laser head. At the same time, with strict assembly process, make sure fiber laser machine with high speed and precision.
4. Cutting: Adopt imported laser head and spare parts to get the best cutting effect.
5. Laser device: Customers can choose domestic and imported laser device with maintenance-free

Teknik parametreler

^{Lazer tipi}	^{Maxphotonics fiber lazer}
^{Lazer gücü}	^{500w 800w 1000w 2000w 3000w fiber optional}
^{Kesim alanı}	^{1500mm * 3000mm}
^{Tüm makine boyutu}	^{1360 * 780 * 1100mm}
^{Gravür hızı}	^{0 - 60,000 mm / dak}
^{Konumlandırma doğruluğunu sıfırlama}	^{± 0.05mm}
^{Çalışma gerilimi}	^{AC 110 - 220V ±% 10, 50 - 60Hz}
^{Toplam güç}	^<1,000W
^{Çalışma sıcaklığı}	^{0 - 45 ° C}
^{Çalışma Nemi}	^{5- 95%}
^{Minimum şekillendirme karakteri}	^{İngilizce 1 x 1mm}
^{Grafik formatı desteklenir}	^{BMP, PLT, DST, DXF ve AI}
^{Sürüş sistemi}	^{500w 800w 1000w 2000w 3000w fiber optional}
^{Soğutma modu}	^{su soğutma ve koruma sistemi}
^{Yardımcı ekipmanlar}	^{Egzoz fanları, hava egzoz borusu}
^{Kontrol yazılımı}	^{Cypcut kontrol sistemi}
^{Uyumlu yazılım}	^{CorelDraw AutoCAD Photoshop}
^{Net ağırlık}	^{3000kg (modellere göre değişir)}

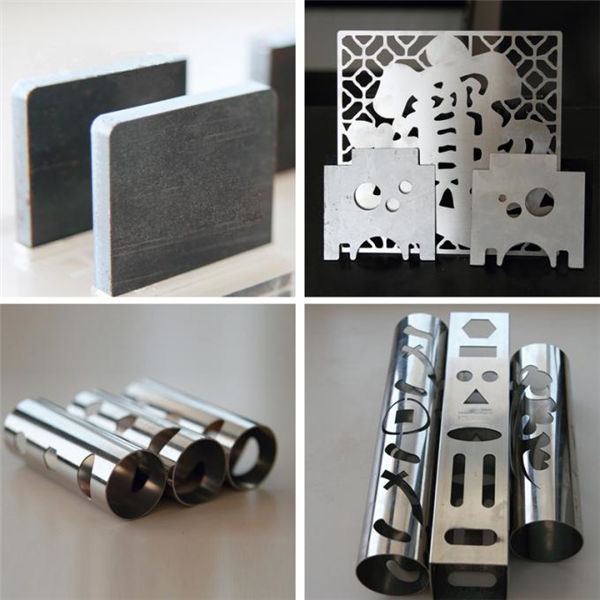

Applications of Metal Fiber Laser Cutting Machine

Uygulama Malzemeleri: Fiber Lazer Kesim Ekipmanları Paslanmaz Çelik Sac, Hafif Çelik Levha, Karbon Çelik Levha, Alaşımlı Çelik Levha, Yaylı Çelik Levha, Demir Levha, Galvanizli Demir, Galvanizli Sac, Alüminyum Levha, Bakır Levha, Pirinç Levha gibi metal kesime uygundur , Bronz Tabak, Altın Tabak, Gümüş Tabak, Titanyum Tabak, Metal Levha, Metal Levha, Borular ve Borular, vb
Uygulama Endüstrileri: Fiber Lazer Kesim Makineleri, Billboard, Reklam, Tabela, Tabela, Metal Harf, LED Harf, Mutfak Gereçleri, Reklam Harfleri, Sac İşleme, Metal Bileşenleri ve Parçaları, Demirbaş, Şasi, Raflar ve Dolapları İşleme, Metal el sanatları, metal sanat eşyaları, asansör panelleri kesme, donanım, otomobil parçaları, Gözlük Çerçevesi, Elektronik Parçalar, İsim Plakaları, vb.
